HPC 36″ 250,000 BTU Penta Fire Pit Burner Flat Pan – Electronic Ignition
The new 36″ Round Electronic Ignition Fire Pit Insert with 30″ Penta Ringﾠ is easy to install and provides a safe environment.ﾠ This burner is a CSA certifiedﾠ burner system that is fully automated with an electronic 120Vor 24V (Optional) ignition.ﾠ Once installed, you’ll be able to ignite your fire feature with the optional remote control or the flip of a switch. These ﾠburners are also compatible with automated pool control systems likeﾠ Jandyﾠ andﾠ Pentair or smart home systems like control 4.
This is our most advanced control system with numerous convenience and performance improvements for both On/Off Models and our newly introduced High/Low Models- such as High/Low flame control via our new remote or smart phone app, a redesigned hot surface ignitor and many other improvements.
Penta Burner Features
Campfire Effect – Taller center flame.
– Uses less fuel to attain same flame height as conventional ring.
– Innovative raised hub design – reduces unwanted water.
– No distinct burner pattern at low flame setting.
– Lower profile design requires less media.
The Penta burner not only looks different, it burns different with lava rock & especially with glass media. It is designed to deliver a very uniform & full flame form edge-to-edge – a dramatically different look than the conventional high-center flame given by standard fire rings. This is accomplished by utilizing holes drilled at the 3, 9, & 12 o’clock positions of the stainless steel tubing for a broader flame. if you enjoy your flame on low, this will not exhibit the ring pattern seen with some concentric fire rings. The burner uses HPC’s raised hub design to shed water and is low profile requiring less media.
These remote electronic ignition fire pit inserts are the top of the line, heavy duty, stainless steel fire pits controlled with handheld remote or wall switch.
All outdoor fire rings have staggered burner ports for a better flame pattern and a more significant flame presence – they feature ports that are drilled not punched; hub is raised above concentric rings to reduce risk of water in valve or gas line.
How it works
Start Up: This is done by use of a wall switch or remote control (or smart phone on Hi/Lo Models. When the ON command is received, the system completes initial safety checks then starts flow of pilot gas. After 5 seconds the hot surface igniter glows igniting pilot flame. When the system confirms pilot flame present, the main burner gas will flow ignited by the pilot flame.
Operation: While enjoying the ambiance of your fire pit, the system is at work monitoring flame status, internal temperatures / voltages and other safety parameters. If flame loss does occur, the system will turn off all gas flow, and then restart by automatically commencing Start sequence.
On/Off Models: Includes the convenience and safety features- optional remote control available.

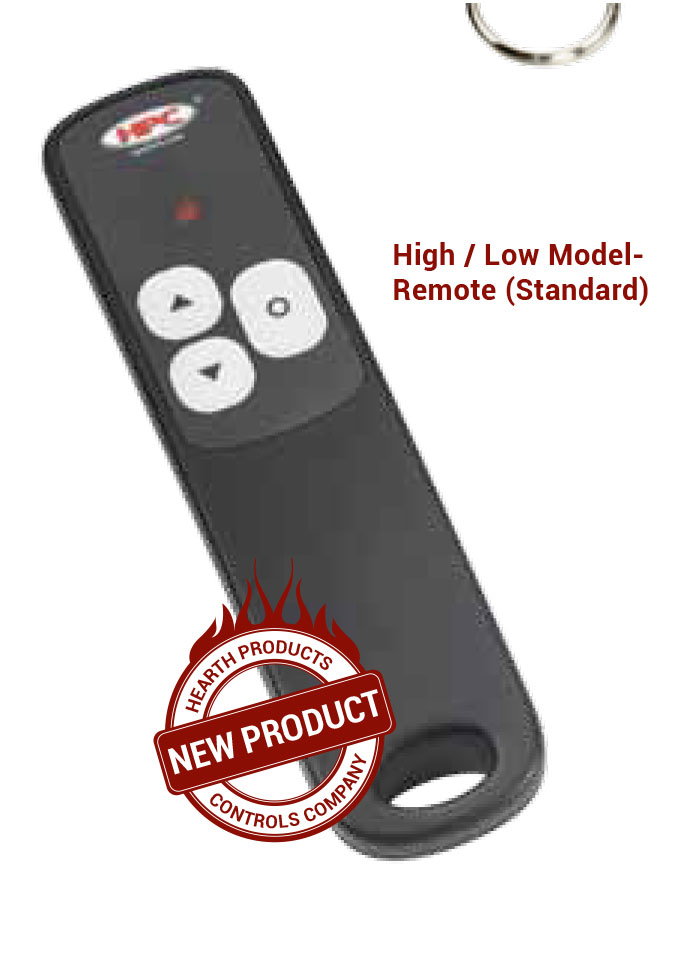

High / Low Flame Control Models: This option includes a remote control and smart phone app with 2-way communication with the fire pit. Remote allows flame height control while receiving information from fire pit to advise user of fire pit status (flashing LED).
Shut Down: To turn OFF the fire pit simply use wall switch, remote control or smart phone.
120V Ignition and Plug, fully assembled
30″ Round Penta Burner
Valve Box and Hot Wire Ignition Pilot
Full Instruction Manual
PENTA36EI-NG/120VAC PENTA36EI-LP/120VAC PENTA36EI-NG/24VAC PENTA36EI-LP/24VAC
PENTA36HI/LO-NG/120VAC PENTA36EI-HI/LO-LP/120VAC PENTA36EI-HI/LO-NG/24VAC PENTA36EI-HI/LO-LP/24VAC
- New Hi/Lo flame adjustment system (Optional)
- 120V or 24V (Optional) Ignition for reliable starts
- A redesigned hot surface ignitor and many other improvements
- You can wire multiple fire features to one switch
- Made of 304 Stainless Steel
- Fully assembled for easy installation
- 36″ Flat type Plate
- 30″ Round Penta Burner
- 250,000 BTUs
- Start via wall switch or remote control
- **Optional 24V systems for use near water features**
- CSA and ANSI meets new upcoming 2018 ANSI Requirements
- Internal temperature monitoring
- Flame sense technology if the burner blows out the gas shuts down
- Can be wired to smart home systems or pool remotes
- Weep holes for drainage
- Click for Clearance Standard Fire Pit
- Click for HWI Round Bowl
- Click for 860-CSA Electronic Ignition Models 08012016
- Click for Gas Sizing Chart
Natural Gas, Propane Gas
|Burner Pan Size||
Fire Pit Installation Collars Galvanized Fire Pit Installation Collars Fire pit installation can be made easier with our installation collar, of an appropriate size, mortared in just below the top course of the enclosure. Makes pan and valve box easy to access. The ID and OD of the fire pit installation collars differ by 6” to allow a small space between the side of the pan and the collar as well as 1” or more of the collar to project into the body of the enclosure and mortared in if desired. The collar should be installed into the enclosure while it is being built. Collar should be ~ 4” below the top of the enclosure.
Gas pressure and type should be checked prior to use and installation. ● Natural Gas Fire Pit: Supply Pressure: Minimum: 3.5” W.C.; Maximum: 7.0” W.C. Outlet Pressure: 3.5” W.C. – ● LP Gas: Supply Pressure: Minimum: 8.0” W.C.; Maximum: 11.0” W.C. Outlet Pressure: 10.0” W.C
250,000 BTUs – 36″ Diameter -30″ Penta Burner – 3/4″ Tube and Piping.
Pan, Burner, & Valve Box: 3 Years Residential; 1 Year Commercial Electronics, Valve, & Pilot Assembly: 1 Year Residential; 6 Months Commercial
This product can expose you to chemicals including Chromium (hexavalaent compounds), which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to: www.p65Warnings.ca.gov
